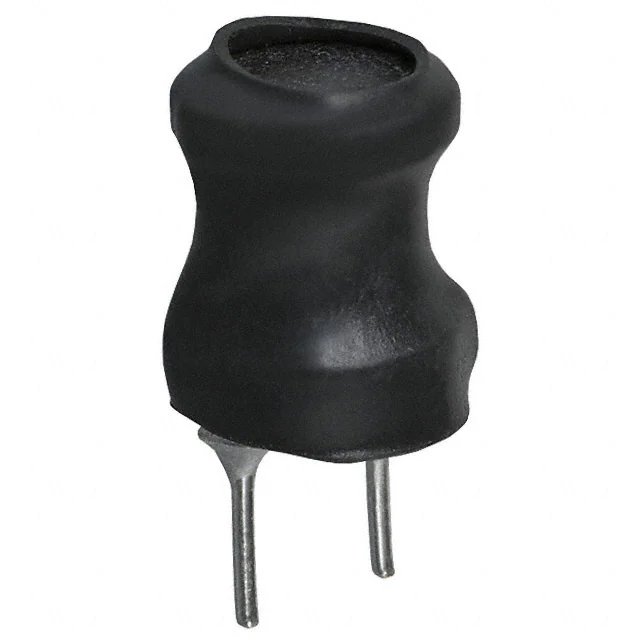

| Part Number | RL822-100K-RC | RL822-101K-RC | RL822-102K-RC | RL822-1R0K-RC | RL822-150K-RC | RL824-100K-RC | RL622-100K-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 100 µH | 1 mH | 1 µH | 15 µH | 10 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.96 A | 580 mA | 160 mA | 3.71 A | 1.75 A | 2.2 A | 3 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 45mOhm Max | 280mOhm Max | 2.96Ohm Max | 13mOhm Max | 58mOhm Max | 52mOhm Max | 45mOhm Max |
| Q @ Freq | 50 @ 2.52MHz | 20 @ 796kHz | 50 @ 252kHz | 20 @ 7.96MHz | 40 @ 2.52MHz | 135 @ 2.5MHz | 50 @ 2.52MHz |
| Frequency - Self Resonant | 14MHz | 3.7MHz | 1.3MHz | 150MHz | 12MHz | 44MHz | 14MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.413" Dia (10.50mm) | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.610" (15.50mm) | 0.433" (11.00mm) |
