RL622-471K-RC
  • Share:

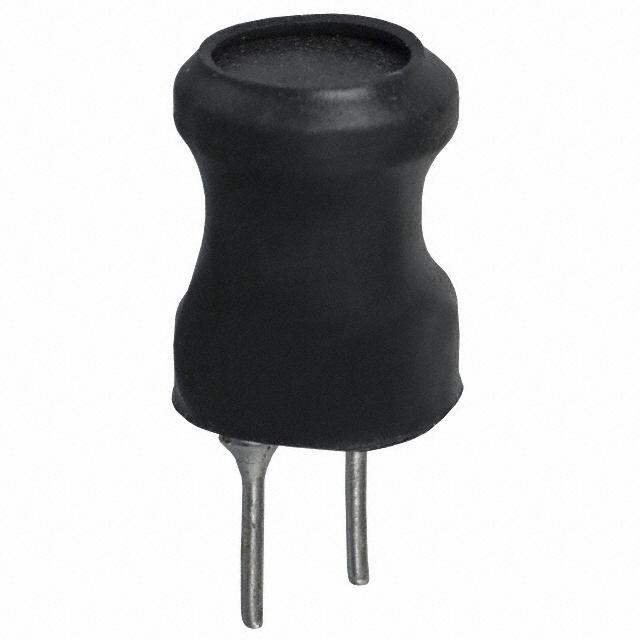

Bourns Inc. RL622-471K-RC

Manufacturer No:
RL622-471K-RC
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
RL622-471K-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 470UH 460MA 1.1 OHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:470 µH
Tolerance:±10%
Current Rating (Amps):460 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.1Ohm Max
Q @ Freq:20 @ 796kHz
Frequency - Self Resonant:1.9MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.335" Dia (8.50mm)
Height - Seated (Max):0.433" (11.00mm)
0 Remaining View Similar

In Stock

$1.19
386

Please send RFQ , we will respond immediately.

Similar Products

Part Number RL622-471K-RC RL622-473K-RC   RL622-472K-RC   RL822-471K-RC   RL622-271K-RC   RL622-470K-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Inductance 470 µH 47 mH 4.7 mH 470 µH 270 µH 47 µH
Tolerance ±10% ±10% ±10% ±10% ±10% ±10%
Current Rating (Amps) 460 mA 30 mA 50 mA 250 mA 570 mA 1.4 A
Current - Saturation (Isat) - - - - - -
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded
DC Resistance (DCR) 1.1Ohm Max 99Ohm Max 16Ohm Max 1.37Ohm Max 750mOhm Max 160mOhm Max
Q @ Freq 20 @ 796kHz 20 @ 79.6kHz 20 @ 252kHz 20 @ 796kHz 20 @ 796kHz 30 @ 2.52MHz
Frequency - Self Resonant 1.9MHz 100kHz 500kHz 1.9MHz 2.4MHz 6.5MHz
Ratings - - - - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Inductance Frequency - Test 796 kHz 79.6 kHz 252 kHz 1 kHz 796 kHz 2.52 MHz
Features - - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder
Supplier Device Package - - - - - -
Size / Dimension 0.335" Dia (8.50mm) 0.335" Dia (8.50mm) 0.335" Dia (8.50mm) 0.335" Dia (8.50mm) 0.335" Dia (8.50mm) 0.335" Dia (8.50mm)
Height - Seated (Max) 0.433" (11.00mm) 0.433" (11.00mm) 0.433" (11.00mm) 0.433" (11.00mm) 0.433" (11.00mm) 0.433" (11.00mm)
