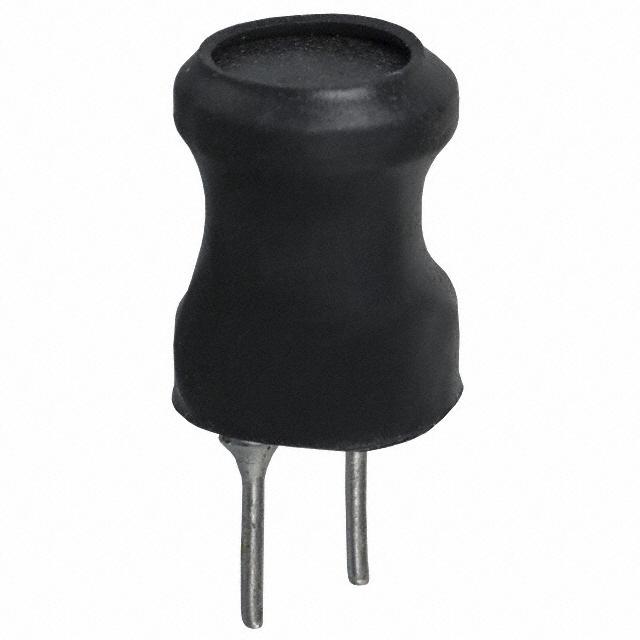

| Part Number | RL622-220K-RC | RL622-221K-RC | RL622-270K-RC | RL622-820K-RC | RL622-222K-RC | RL622-223K-RC | RL822-220K-RC | RL622-120K-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 220 µH | 27 µH | 82 µH | 2.2 mH | 22 mH | 22 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2 A | 640 mA | 1.7 A | 1.1 A | 80 mA | 30 mA | 1.29 A | 2.7 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 70mOhm Max | 650mOhm Max | 80mOhm Max | 230mOhm Max | 6.8Ohm Max | 56Ohm Max | 70mOhm Max | 50mOhm Max |
| Q @ Freq | 40 @ 2.52MHz | 20 @ 796kHz | 30 @ 2.52MHz | 30 @ 2.52MHz | 20 @ 252kHz | 30 @ 79.6kHz | 40 @ 2.52MHz | 50 @ 2.52MHz |
| Frequency - Self Resonant | 9.2MHz | 2.7MHz | 8.5MHz | 4.1MHz | 900kHz | 100kHz | 9.2MHz | 13MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 796 kHz | 2.52 MHz | 2.52 MHz | 252 kHz | 79.6 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
