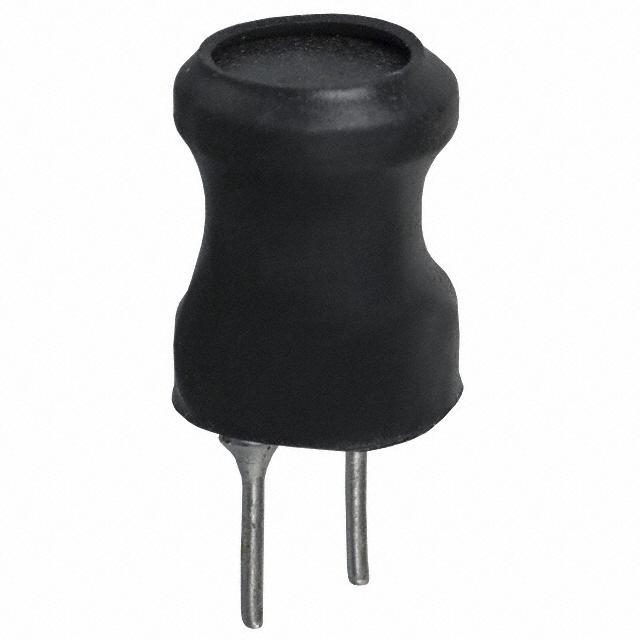

| Part Number | RL622-150K-RC | RL622-1R0K-RC | RL622-153K-RC | RL622-180K-RC | RL622-151K-RC | RL822-150K-RC | RL622-152K-RC | RL622-100K-RC | RL622-120K-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1 µH | 15 mH | 18 µH | 150 µH | 15 µH | 1.5 mH | 10 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2.3 A | 10 A | 40 mA | 2.2 A | 750 mA | 1.75 A | 80 mA | 3 A | 2.7 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 56mOhm Max | 13mOhm Max | 37Ohm Max | 61mOhm Max | 370mOhm Max | 58mOhm Max | 6.1Ohm Max | 45mOhm Max | 50mOhm Max |
| Q @ Freq | 40 @ 2.52MHz | 20 @ 7.96MHz | 40 @ 79.6kHz | 40 @ 2.52MHz | 20 @ 796kHz | 40 @ 2.52MHz | 20 @ 252kHz | 50 @ 2.52MHz | 50 @ 2.52MHz |
| Frequency - Self Resonant | 12MHz | 150MHz | 200kHz | 11MHz | 3.2MHz | 12MHz | 1MHz | 14MHz | 13MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 7.96 MHz | 79.6 kHz | 2.52 MHz | 796 kHz | 1 kHz | 252 kHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
