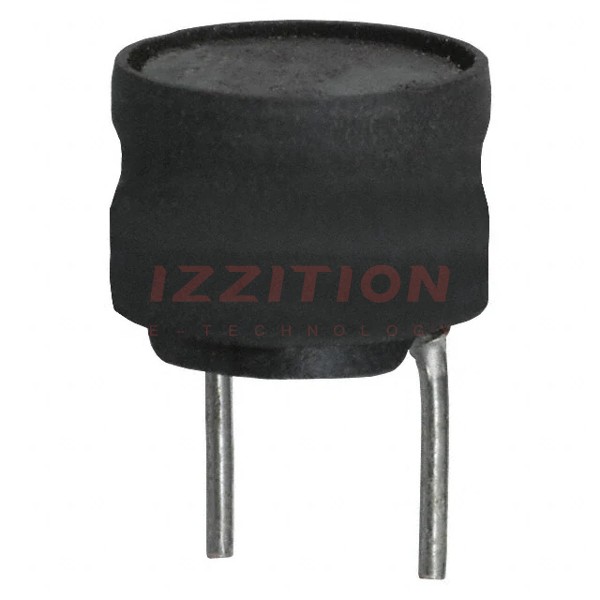

| Part Number | RL262-103J-RC | RL262-153J-RC | RL262-101J-RC | RL262-102J-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 mH | 15 mH | 100 µH | 1 mH |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 20 mA | 20 mA | 200 mA | 50 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 55Ohm Max | 80Ohm Max | 2Ohm Max | 9Ohm Max |
| Q @ Freq | 60 @ 79.6kHz | 60 @ 79.6kHz | 60 @ 796kHz | 80 @ 252kHz |
| Frequency - Self Resonant | 600kHz | 500kHz | 6.1MHz | 2.1MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79.6 kHz | 79.6 kHz | 796 kHz | 252 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) |
