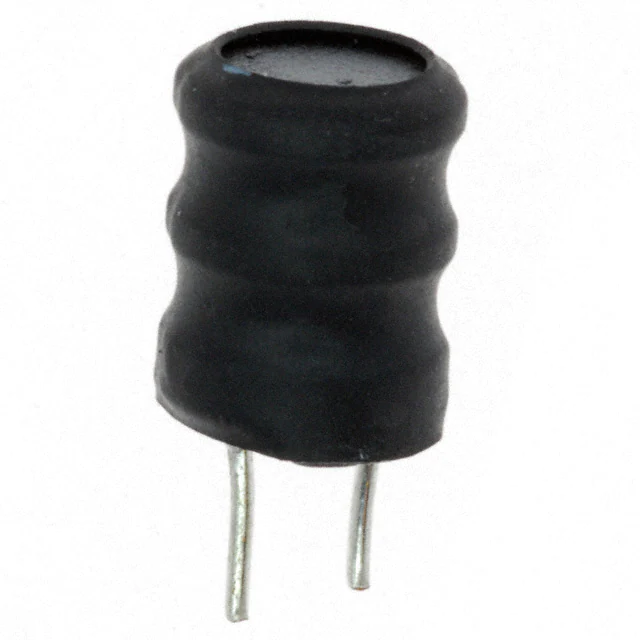

RL187-822J-RC
  • Share:

Bourns Inc. RL187-822J-RC

Manufacturer No:
RL187-822J-RC
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
RL187-822J-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 8.2MH 50MA 26 OHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:8.2 mH
Tolerance:±5%
Current Rating (Amps):50 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):26Ohm Max
Q @ Freq:90 @ 252kHz
Frequency - Self Resonant:400kHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:252 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.441" (11.20mm)
0 Remaining View Similar

In Stock

$0.54
1,278

Please send RFQ , we will respond immediately.

Similar Products

Part Number RL187-822J-RC RL187-122J-RC   RL187-222J-RC   RL187-821J-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite Ferrite
Inductance 8.2 mH 1.2 mH 2.2 mH 820 µH
Tolerance ±5% ±5% ±5% ±5%
Current Rating (Amps) 50 mA 150 mA 100 mA 200 mA
Current - Saturation (Isat) - - - -
Shielding Unshielded Unshielded Unshielded Unshielded
DC Resistance (DCR) 26Ohm Max 9Ohm Max 13Ohm Max 6Ohm Max
Q @ Freq 90 @ 252kHz 90 @ 252kHz 90 @ 252kHz 80 @ 796kHz
Frequency - Self Resonant 400kHz 1.2MHz 900kHz 1.4MHz
Ratings - - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Inductance Frequency - Test 252 kHz 252 kHz 252 kHz 796 kHz
Features - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder
Supplier Device Package - - - -
Size / Dimension 0.315" Dia (8.00mm) 0.315" Dia (8.00mm) 0.315" Dia (8.00mm) 0.315" Dia (8.00mm)
Height - Seated (Max) 0.441" (11.20mm) 0.441" (11.20mm) 0.441" (11.20mm) 0.441" (11.20mm)
