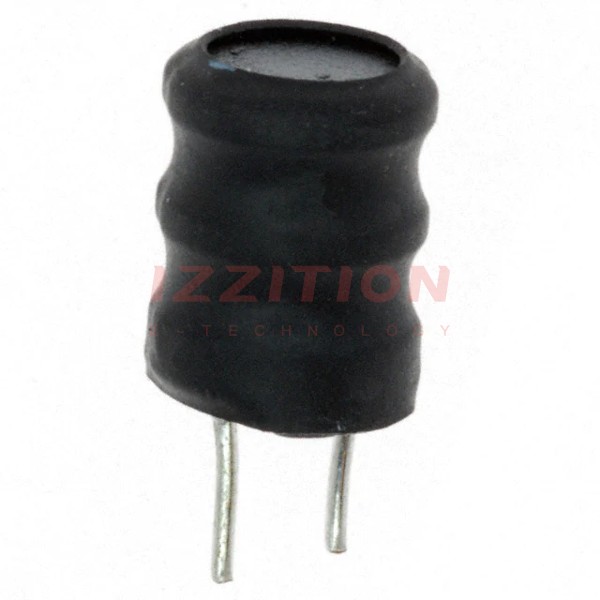

| Part Number | RL187-273J-RC | RL187-223J-RC | RL187-272J-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 27 mH | 22 mH | 2.7 mH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 30 mA | 30 mA | 100 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 80Ohm Max | 80Ohm Max | 13Ohm Max |
| Q @ Freq | 100 @ 79.6kHz | 100 @ 79.6kHz | 90 @ 252kHz |
| Frequency - Self Resonant | 300kHz | 300kHz | 800kHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79.6 kHz | 79.6 kHz | 252 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.441" (11.20mm) | 0.441" (11.20mm) | 0.441" (11.20mm) |
