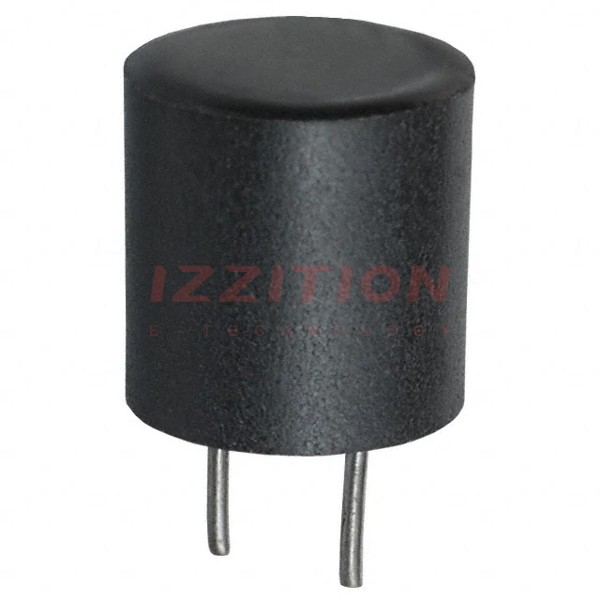

| Part Number | RL181S-332J-RC | RL181S-333J-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 mH | 33 mH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 50 mA | 17 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 6.1Ohm Max | 26Ohm Max |
| Q @ Freq | 100 @ 50kHz | 100 @ 50kHz |
| Frequency - Self Resonant | 440kHz | 160kHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.551" (14.00mm) |
