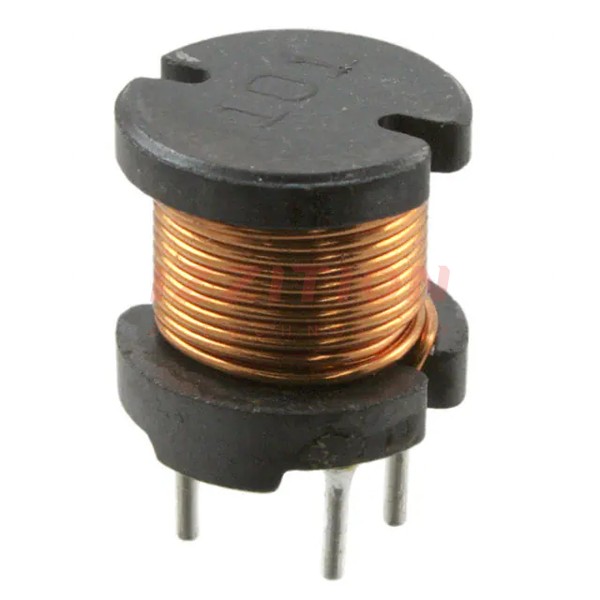

| Part Number | RL110-681K-RC | RL110-181K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 680 µH | 180 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 650 mA | 1.3 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max | 310mOhm Max |
| Q @ Freq | 20 @ 796kHz | 25 @ 796kHz |
| Frequency - Self Resonant | 2.1MHz | 3.9MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) |
