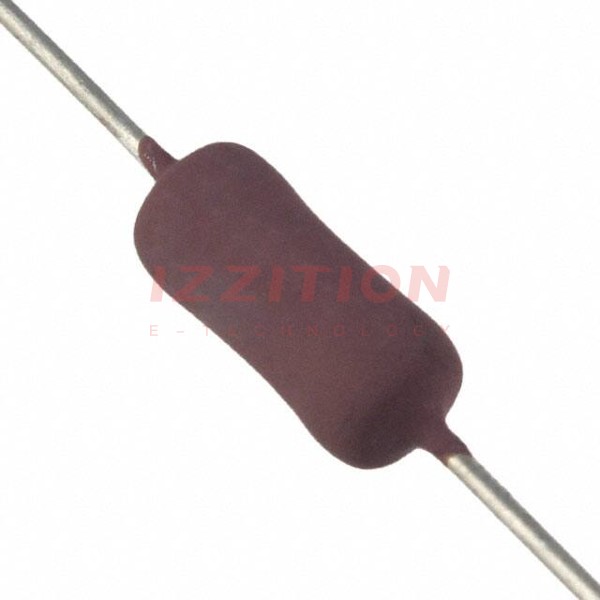

| Part Number | PWR4522AS10R0JA | PWR4522AS15R0JA | PWR4522AS1000JA |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active |
| Resistance | 10 Ohms | 15 Ohms | 100 Ohms |
| Tolerance | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound |
| Features | Flame Proof, Fusible, Pulse Withstanding, Safety | Flame Proof, Fusible, Pulse Withstanding, Safety | Flame Proof, Fusible, Pulse Withstanding, Safety |
| Temperature Coefficient | ±90ppm/°C | ±90ppm/°C | ±90ppm/°C |
| Operating Temperature | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial |
| Size / Dimension | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) |
| Height - Seated (Max) | - | - | - |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
