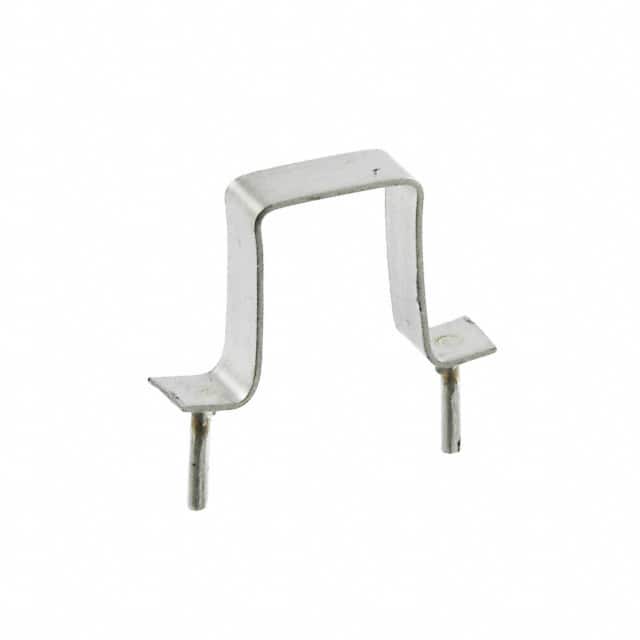

| Part Number | PWR4413DR030F | PWR4413DR040F | PWR4413DR050F | PWR4413DR030J | PWR4413BR030F | PWR4413CR030F | PWR4413DR010F | PWR4413DR020F |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 30 mOhms | 40 mOhms | 50 mOhms | 30 mOhms | 30 mOhms | 30 mOhms | 10 mOhms | 20 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 5W | 5W | 5W | 5W | 1W | 3W | 5W | 5W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding |
| Temperature Coefficient | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 325°C | -55°C ~ 325°C | -55°C ~ 325°C | -55°C ~ 325°C | -55°C ~ 325°C | -55°C ~ 325°C | -55°C ~ 325°C | -55°C ~ 325°C |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | - | Radial Lead | - | Radial Lead | Radial Lead | - | Radial Lead | Radial Lead |
| Size / Dimension | 0.800" L x 0.157" W (20.32mm x 4.00mm) | 0.800" L x 0.157" W (20.32mm x 4.00mm) | 0.800" L x 0.157" W (20.32mm x 4.00mm) | 0.800" L x 0.157" W (20.32mm x 4.00mm) | 0.450" L x 0.157" W (11.43mm x 4.00mm) | 0.600" L x 0.157" W (15.24mm x 4.00mm) | 0.800" L x 0.157" W (20.32mm x 4.00mm) | 0.800" L x 0.157" W (20.32mm x 4.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.024" (26.00mm) | 1.024" (26.00mm) | 1.024" (26.00mm) | - | 0.630" (16.00mm) | 1.024" (26.00mm) | 1.024" (26.00mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
