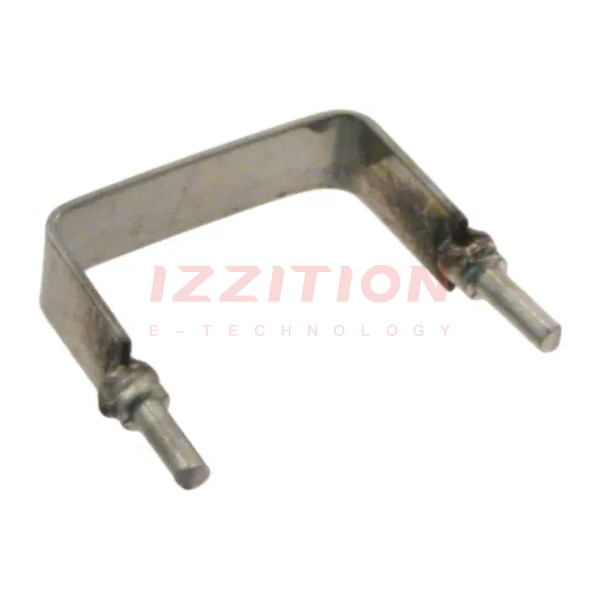

| Part Number | PWR4412-2SCR0500J | PWR4412-2SCR0800J | PWR4412-2SDR0500J | PWR4412-2SBR0500J | PWR4412-2SCR0100J | PWR4412-2SCR0200J | PWR4412-2SCR0300J | PWR4412-2SCR0400J | PWR4412-2SCR0500F |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete | Active | Obsolete |
| Resistance | 50 mOhms | 80 mOhms | 50 mOhms | 50 mOhms | 10 mOhms | 20 mOhms | 30 mOhms | 40 mOhms | 50 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% |
| Power (Watts) | 3W | 3W | 5W | 1W | 3W | 3W | 3W | 3W | 3W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C | -55°C ~ 270°C |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.600" L x 0.189" W (15.24mm x 4.80mm) | 0.600" L x 0.189" W (15.24mm x 4.80mm) | 0.800" L x 0.189" W (20.32mm x 4.80mm) | 0.450" L x 0.189" W (11.43mm x 4.80mm) | 0.600" L x 0.189" W (15.24mm x 4.80mm) | 0.600" L x 0.189" W (15.24mm x 4.80mm) | 0.600" L x 0.189" W (15.24mm x 4.80mm) | 0.600" L x 0.189" W (15.24mm x 4.80mm) | 0.600" L x 0.189" W (15.24mm x 4.80mm) |
| Height - Seated (Max) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | 0.300" (7.62mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | 1.000" (25.40mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
