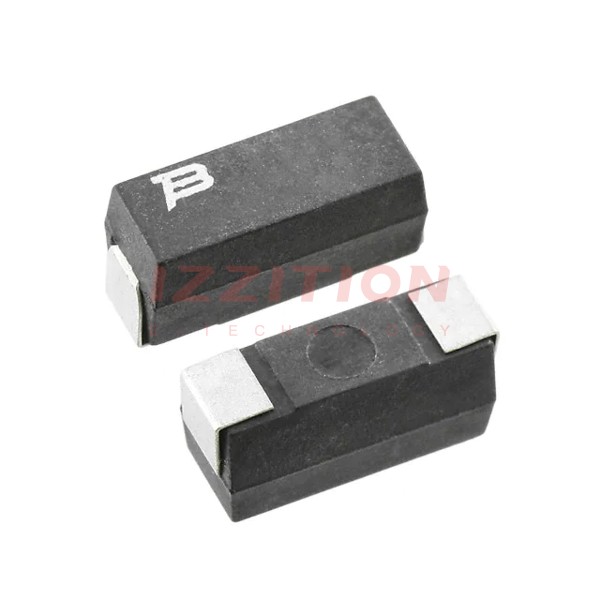

| Part Number | PWR4318W10R0JE | PWR4318W20R0JE | PWR4318W1000JE |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance | 10 Ohms | 20 Ohms | 100 Ohms |
| Tolerance | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W |
| Composition | Wirewound | Wirewound | Wirewound |
| Features | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 4318 J-Lead | 4318 J-Lead | 4318 J-Lead |
| Supplier Device Package | 4318 | 4318 | 4318 |
| Ratings | - | - | - |
| Size / Dimension | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.433" L x 0.177" W (11.00mm x 4.50mm) |
| Height - Seated (Max) | 0.203" (5.16mm) | 0.203" (5.16mm) | 0.203" (5.16mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
