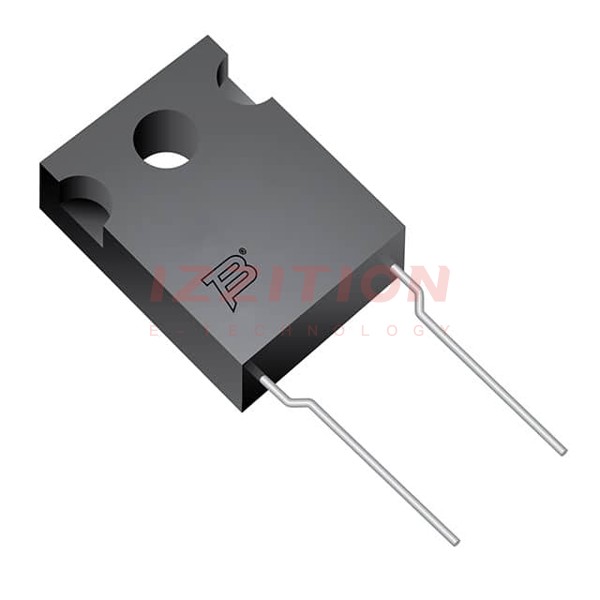

| Part Number | PWR247T-100-10R0F | PWR247T-100-30R0F | PWR247T-100-10R0J | PWR247T-100-15R0F | PWR247T-100-20R0F | PWR247T-100-1000F |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 30 Ohms | 10 Ohms | 15 Ohms | 20 Ohms | 100 Ohms |
| Tolerance | ±1% | ±1% | ±5% | ±1% | ±1% | ±1% |
| Power (Watts) | 100W | 100W | 100W | 100W | 100W | 100W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C | ±100ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247 | TO-247 | TO-247 | TO-247 | TO-247 | TO-247 |
| Size / Dimension | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.620" L x 0.195" W (15.75mm x 4.95mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 0.965" (24.51mm) | 0.965" (24.50mm) | 0.965" (24.50mm) | 0.965" (24.50mm) | 0.965" (24.50mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
