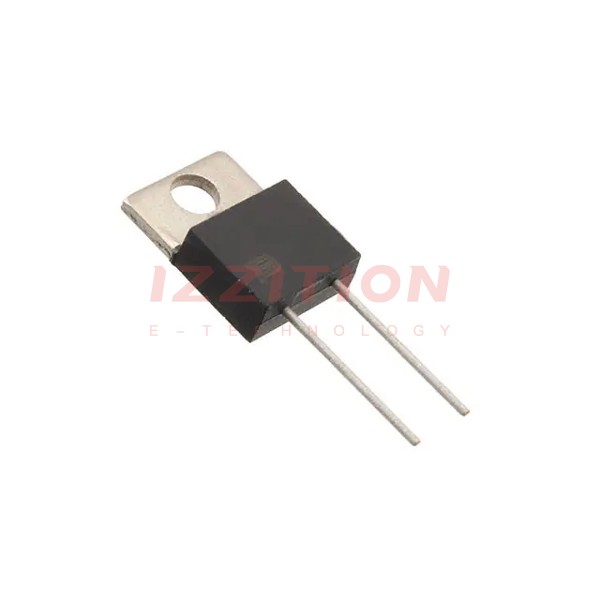

| Part Number | PWR220T-35-27R0J | PWR220T-35-47R0J | PWR220T-35-22R0J | PWR220T-35-25R0J |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance | 27 Ohms | 47 Ohms | 22 Ohms | 25 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 35W | 35W | 35W | 35W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack |
| Supplier Device Package | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Size / Dimension | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) |
| Height - Seated (Max) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.575" (14.60mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
