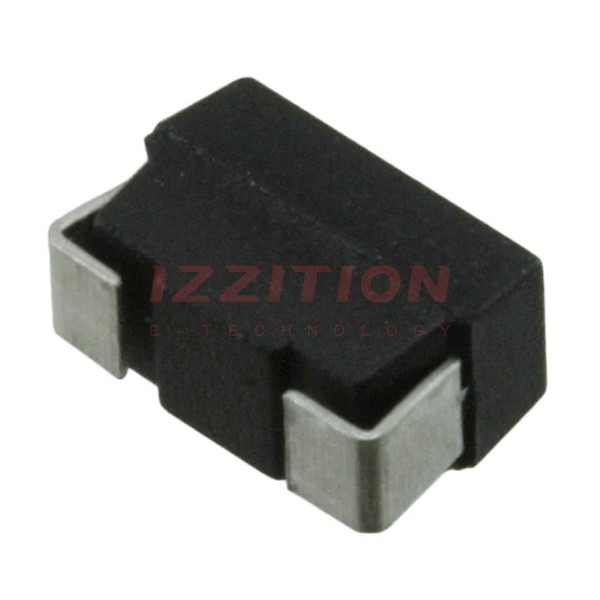

| Part Number | PWR2010WR100J | PWR2010WR100JE | PWR2010WR150J | PWR2010WR200J | PWR2010WR300J | PWR2010WR100F |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 100 mOhms | 100 mOhms | 150 mOhms | 200 mOhms | 300 mOhms | 100 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding | Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±90ppm/°C | ±90ppm/°C | ±90ppm/°C | ±90ppm/°C | ±90ppm/°C | ±90ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2010 J-Lead | 2010 J-Lead | 2010 J-Lead | 2010 J-Lead | 2010 J-Lead | 2010 J-Lead |
| Supplier Device Package | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 |
| Ratings | - | - | - | - | - | - |
| Size / Dimension | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) |
| Height - Seated (Max) | 0.148" (3.76mm) | 0.148" (3.76mm) | 0.148" (3.76mm) | 0.148" (3.76mm) | 0.148" (3.76mm) | 0.148" (3.76mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
