Please send RFQ , we will respond immediately.

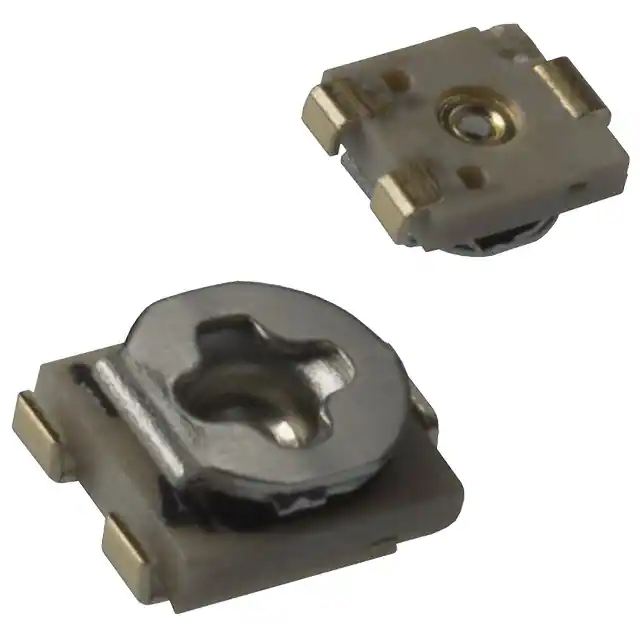

| Part Number | PVZ2A303A01R00 | PVZ2A304A01R00 | PVZ2A503A01R00 | PVZ2A103A01R00 | PVZ2A203A01R00 | PVZ2A302A01R00 |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 30 kOhms | 300 kOhms | 50 kOhms | 10 kOhms | 20 kOhms | 3 kOhms |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% | ±30% |
| Temperature Coefficient | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing, 90° Bend | Gull Wing, 90° Bend | Gull Wing, 90° Bend | Gull Wing, 90° Bend | Gull Wing, 90° Bend | Gull Wing, 90° Bend |
| Size / Dimension | Rectangular - 0.087" x 0.083" Face (2.20mm x 2.10mm) | Rectangular - 0.087" x 0.083" Face (2.20mm x 2.10mm) | Rectangular - 0.087" x 0.083" Face (2.20mm x 2.10mm) | Rectangular - 0.087" x 0.083" Face (2.20mm x 2.10mm) | Rectangular - 0.087" x 0.083" Face (2.20mm x 2.10mm) | Rectangular - 0.087" x 0.083" Face (2.20mm x 2.10mm) |
