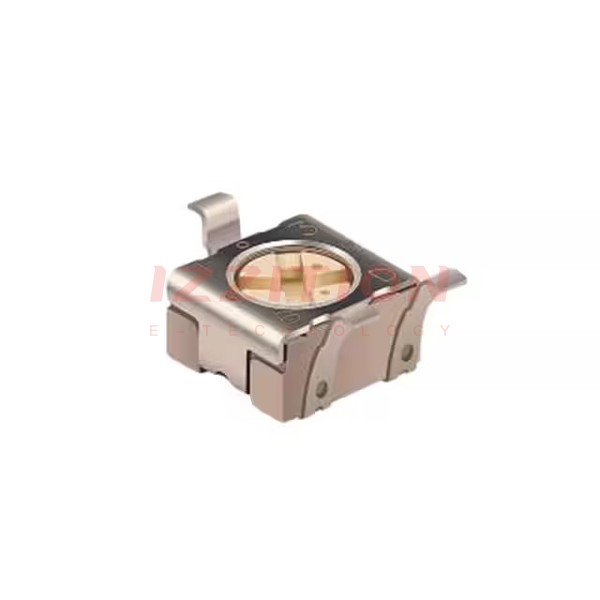

| Part Number | PVG3K503C01R00 | PVG3K504C01R00 | PVG3A503C01R00 | PVG3G503C01R00 | PVG3K103C01R00 | PVG3K203C01R00 | PVG3K500C01R00 | PVG3K501C01R00 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 kOhms | 500 kOhms | 50 kOhms | 50 kOhms | 10 kOhms | 20 kOhms | 50 Ohms | 500 Ohms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Bottom Adjustment | Bottom Adjustment | Top Adjustment | Top Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing | Gull Wing | J Lead | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Size / Dimension | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) |
