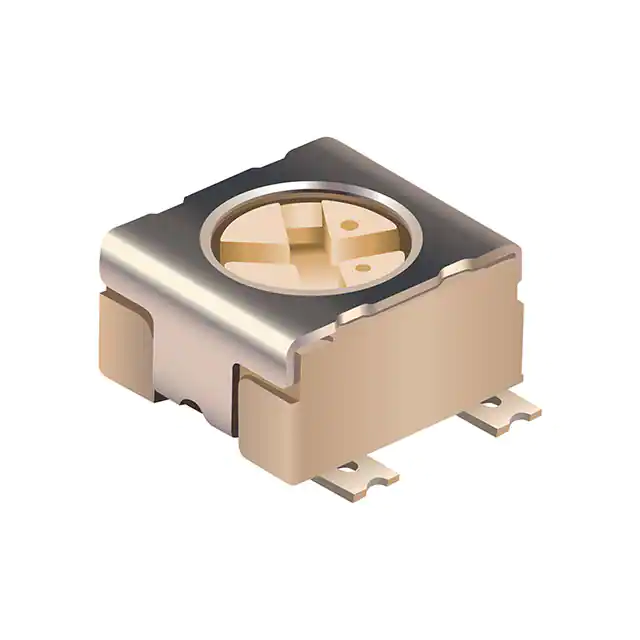

| Part Number | PVG3G105C01R00 | PVG3G205C01R00 | PVG3K105C01R00 | PVG3A105C01R00 | PVG3G100C01R00 | PVG3G101C01R00 | PVG3G102C01R00 | PVG3G103C01R00 | PVG3G104C01R00 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 2 MOhms | 100 kOhms | 1 MOhms | 10 Ohms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Bottom Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing | Gull Wing | Gull Wing | J Lead | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Size / Dimension | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) | Rectangular - 0.142" x 0.134" Face (3.60mm x 3.40mm) |
