Please send RFQ , we will respond immediately.

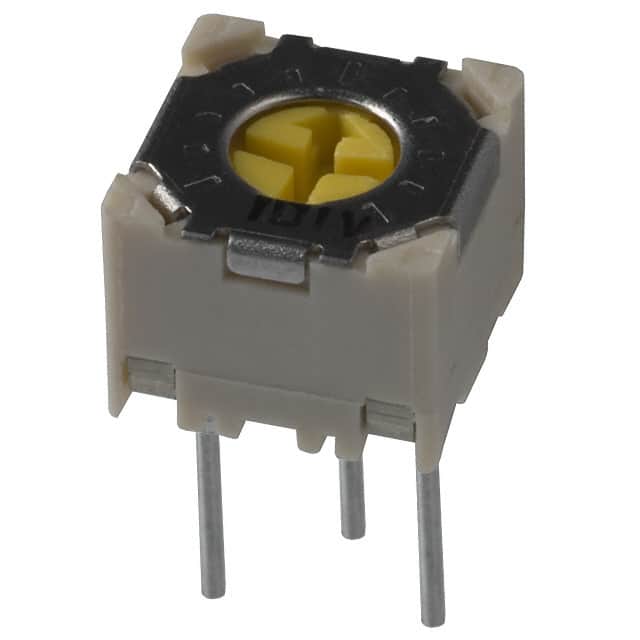

| Part Number | PVC6A251A01B00 | PVC6A252A01B00 | PVC6A253A01B00 | PVC6A254A01B00 | PVC6D251A01B00 | PVC6E251A01B00 | PVC6A251C01B00 | PVC6A201A01B00 | PVC6A250A01B00 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 250 Ohms | 2.5 kOhms | 25 kOhms | 250 kOhms | 250 Ohms | 250 Ohms | 250 Ohms | 200 Ohms | 25 Ohms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Rectangular - 0.315" x 0.272" Face (8.00mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) | Square - 0.272" x 0.272" Face (6.90mm x 6.90mm) |
