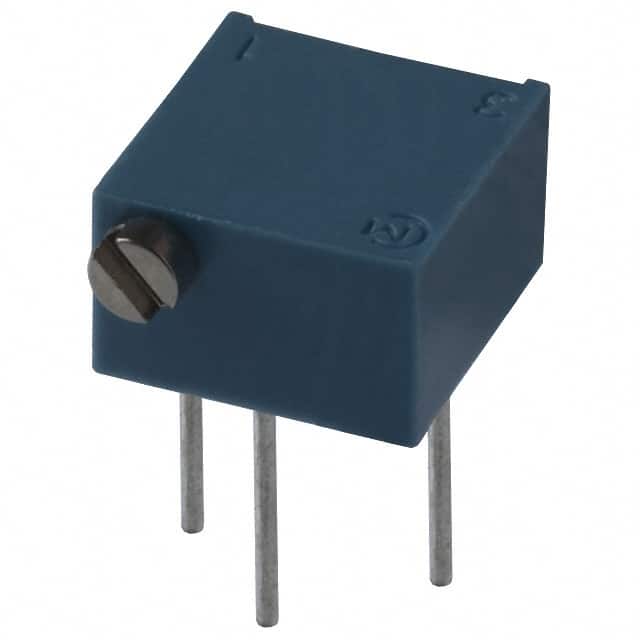

| Part Number | PV37P103A01B00 | PV37P104A01B00 | PV37P105A01B00 | PV37P203A01B00 | PV37P503A01B00 | PV37W103A01B00 | PV37X103A01B00 | PV37Y103A01B00 | PV37P100A01B00 | PV37P101A01B00 | PV37P102A01B00 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 10 kOhms | 100 kOhms | 1 MOhms | 20 kOhms | 50 kOhms | 10 kOhms | 10 kOhms | 10 kOhms | 10 Ohms | 100 Ohms | 1 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C |
| Number of Turns | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.264" x 0.157" Face (6.70mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) |
