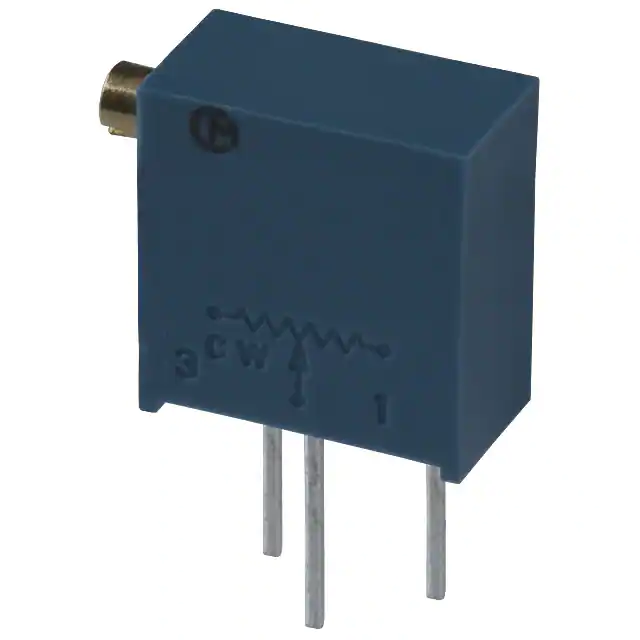

| Part Number | PV36Z105C01B00 | PV36Z205C01B00 | PV36X105C01B00 | PV36Y105C01B00 | PV36Z100C01B00 | PV36Z101C01B00 | PV36Z102C01B00 | PV36Z103C01B00 | PV36Z104C01B00 | PV36Z105A01B00 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Resistance | 1 MOhms | 2 MOhms | 1 MOhms | 1 MOhms | 10 Ohms | 100 Ohms | 1 kOhms | 10 kOhms | 100 kOhms | 1 MOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±150ppm/°C | ±150ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) |
