Please send RFQ , we will respond immediately.

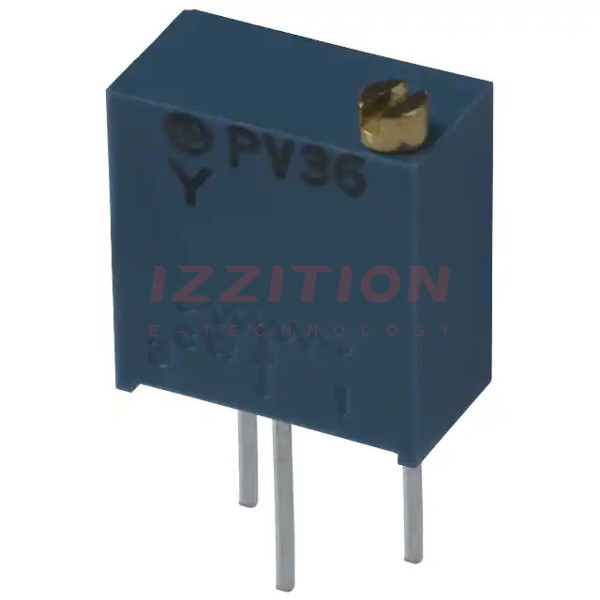

| Part Number | PV36Y253A01B00 | PV36Y253C01B00 | PV36Y254A01B00 | PV36Z253A01B00 | PV36W253A01B00 | PV36X253A01B00 | PV36Y203A01B00 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 25 kOhms | 25 kOhms | 250 kOhms | 25 kOhms | 25 kOhms | 25 kOhms | 20 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) |
