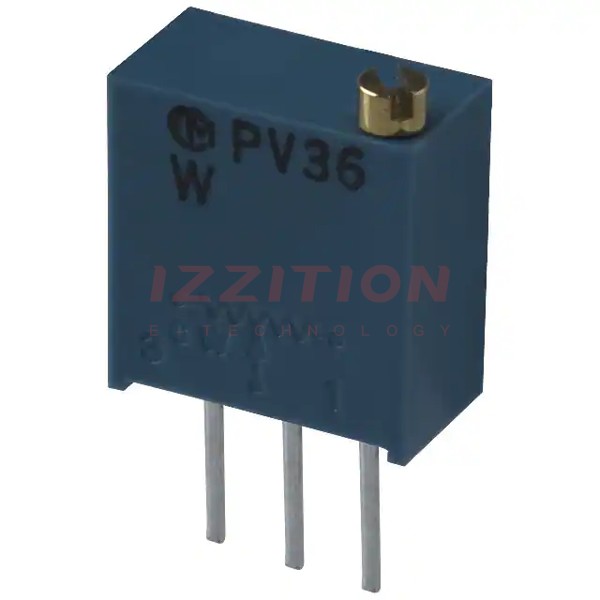

| Part Number | PV36W204A01B00 | PV36W204C01B00 | PV36W205A01B00 | PV36W254A01B00 | PV36W504A01B00 | PV36X204A01B00 | PV36Y204A01B00 | PV36P204A01B00 | PV36W104A01B00 | PV36W200A01B00 | PV36W201A01B00 | PV36W202A01B00 | PV36W203A01B00 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 200 kOhms | 200 kOhms | 2 MOhms | 250 kOhms | 500 kOhms | 200 kOhms | 200 kOhms | 200 kOhms | 100 kOhms | 20 Ohms | 200 Ohms | 2 kOhms | 20 kOhms |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±150ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Side Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) |
