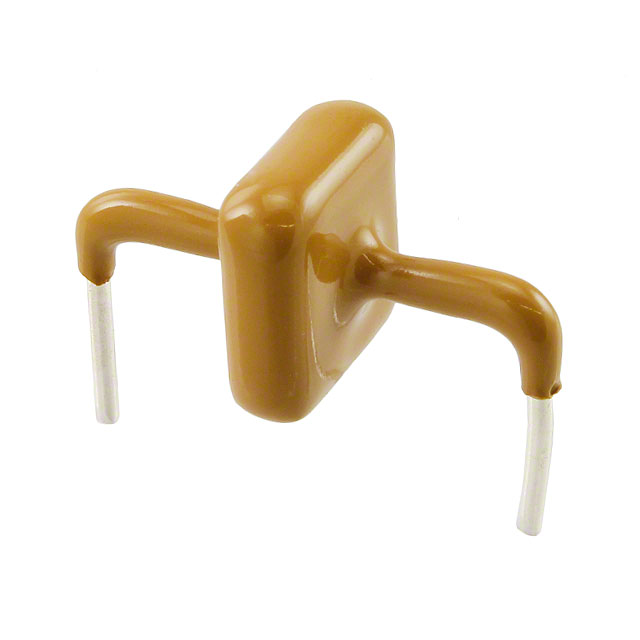

| Part Number | PTVS6-058C-TH | PTVS3-058C-TH | PTVS6-058C-SH |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 58V | 58V | 58V |
| Voltage - Breakdown (Min) | 64V | 64V | 64V |
| Voltage - Clamping (Max) @ Ipp | 110V | 110V | 110V |
| Current - Peak Pulse (10/1000µs) | 6000A (6kA) (8/20µs) | 3000A (3kA) (8/20µs) | 6000A (6kA) (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | 2-SMD |
| Supplier Device Package | Axial | Axial | SMD |
