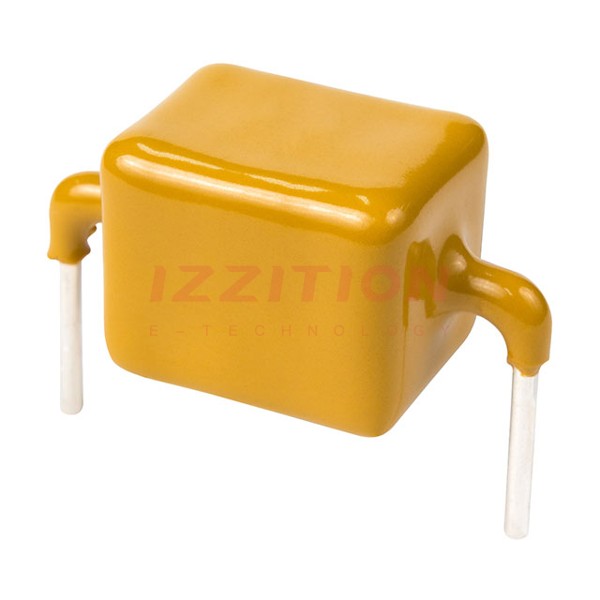

| Part Number | PTVS10-380C-TH | PTVS1-380C-TH | PTVS10-320C-TH |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 380V | 380V | 320V |
| Voltage - Breakdown (Min) | 401V | 401V | 336V |
| Voltage - Clamping (Max) @ Ipp | 520V | 520V (Typ) | 440V |
| Current - Peak Pulse (10/1000µs) | 10000A (10kA) (8/20µs) | 1000A (1kA) (8/20µs) | 10000A (10kA) (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | 120pF @ 10kHz | - |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | - | - | - |
