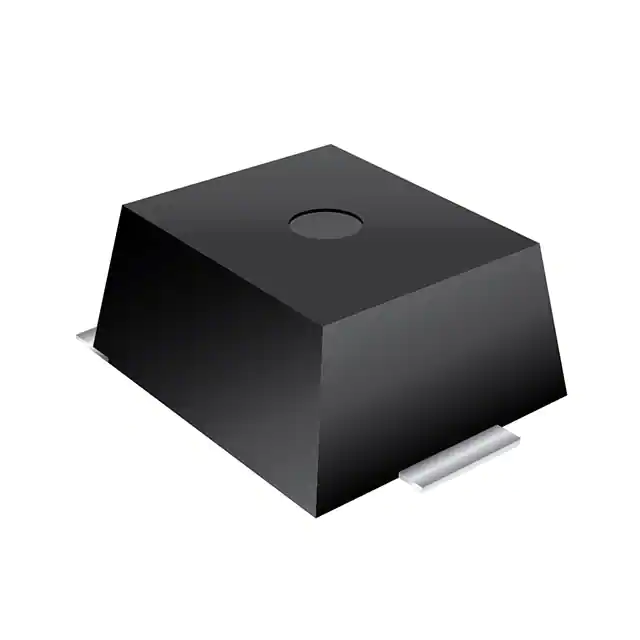

| Part Number | PTVS10-066C-M | PTVS10-076C-M | PTVS10-086C-M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 66V | 76V | 86V |
| Voltage - Breakdown (Min) | 72V | 85V | 96V |
| Voltage - Clamping (Max) @ Ipp | 120V | 135V | 157V |
| Current - Peak Pulse (10/1000µs) | 10000A (10kA) (8/20µs) | 10000A (10kA) (8/20µs) | 10000A (10kA) (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 6700pF @ 10kHz | 5500pF @ 10kHz | - |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | - | - | 2-SMD |
