PTV09A-4030F-B502
  • Share:

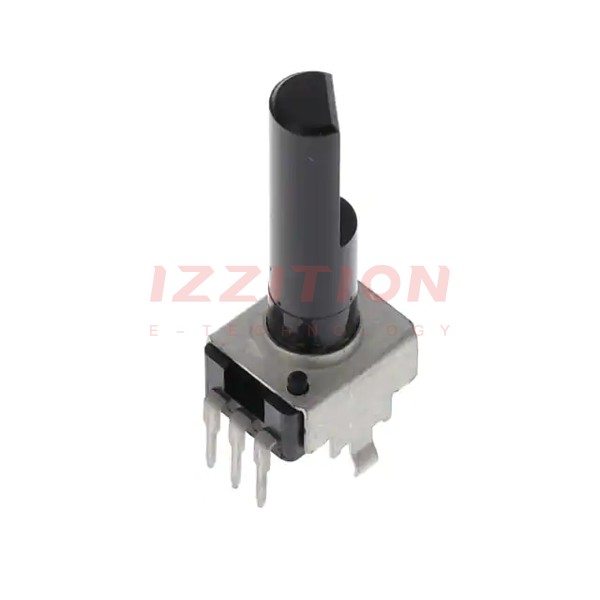

Bourns Inc. PTV09A-4030F-B502

Manufacturer No:
PTV09A-4030F-B502
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
PTV09A-4030F-B502 Datasheet
ECAD Model:
-
Description:
POT 5K OHM 1/20W CARBON LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):5k
Tolerance:±20%
Power (Watts):0.05W, 1/20W
Built in Switch:None
Number of Turns:1
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:Top Adjustment
Temperature Coefficient:-
Rotation:280°
Resistive Material:Carbon
Termination Style:PC Pins, Board Locks
Actuator Type:Flatted
Actuator Length:1.181" (30.00mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:-
Mounting Type:Through Hole, Snap In
0 Remaining View Similar

In Stock

$0.96
364

Please send RFQ , we will respond immediately.

Similar Products

Part Number PTV09A-4030F-B502 PTV09A-4030F-B503   PTV09A-4030U-B502   PTV09A-4020F-B502
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Resistance (Ohms) 5k 50k 5k 5k
Tolerance ±20% ±20% ±20% ±20%
Power (Watts) 0.05W, 1/20W 0.05W, 1/20W 0.05W, 1/20W 0.05W, 1/20W
Built in Switch None None None None
Number of Turns 1 1 1 1
Features - - - -
Taper Linear Linear Linear Linear
Number of Gangs 1 1 1 1
Adjustment Type Top Adjustment Top Adjustment Top Adjustment Top Adjustment
Temperature Coefficient - - - -
Rotation 280° 280° 280° 280°
Resistive Material Carbon Carbon Carbon Carbon
Termination Style PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks
Actuator Type Flatted Flatted Knurled Flatted
Actuator Length 1.181" (30.00mm) 1.181" (30.00mm) 1.181" (30.00mm) 0.787" (20.00mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Bushing Thread - - - -
Mounting Type Through Hole, Snap In Through Hole, Snap In Through Hole, Snap In Through Hole, Snap In
