PTV09A-4020F-A502
  • Share:

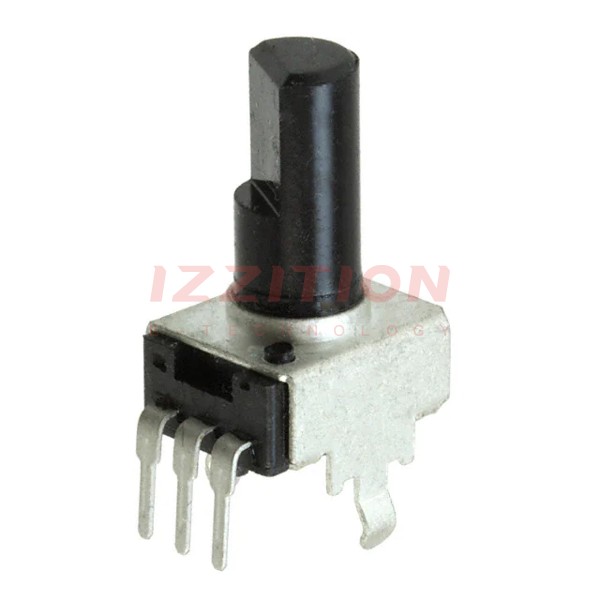

Bourns Inc. PTV09A-4020F-A502

Manufacturer No:
PTV09A-4020F-A502
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
PTV09A-4020F-A502 Datasheet
ECAD Model:
-
Description:
POT 5K OHM 1/20W CARBON LOG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):5k
Tolerance:±20%
Power (Watts):0.05W, 1/20W
Built in Switch:None
Number of Turns:1
Features:-
Taper:Logarithmic
Number of Gangs:1
Adjustment Type:Top Adjustment
Temperature Coefficient:-
Rotation:280°
Resistive Material:Carbon
Termination Style:PC Pins, Board Locks
Actuator Type:Flatted
Actuator Length:0.787" (20.00mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:-
Mounting Type:Through Hole, Snap In
0 Remaining View Similar

In Stock

$0.96
849

Please send RFQ , we will respond immediately.

Similar Products

Part Number PTV09A-4020F-A502 PTV09A-4020F-A504   PTV09A-4020F-B502   PTV09A-2020F-A502
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Resistance (Ohms) 5k 500k 5k 5k
Tolerance ±20% ±20% ±20% ±20%
Power (Watts) 0.05W, 1/20W 0.05W, 1/20W 0.05W, 1/20W 0.05W, 1/20W
Built in Switch None None None None
Number of Turns 1 1 1 1
Features - - - -
Taper Logarithmic Logarithmic Linear Logarithmic
Number of Gangs 1 1 1 1
Adjustment Type Top Adjustment Top Adjustment Top Adjustment Side Adjustment
Temperature Coefficient - - - -
Rotation 280° 280° 280° 280°
Resistive Material Carbon Carbon Carbon Carbon
Termination Style PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks
Actuator Type Flatted Flatted Flatted Flatted
Actuator Length 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Bushing Thread - - - -
Mounting Type Through Hole, Snap In Through Hole, Snap In Through Hole, Snap In Through Hole, Snap In
