Please send RFQ , we will respond immediately.

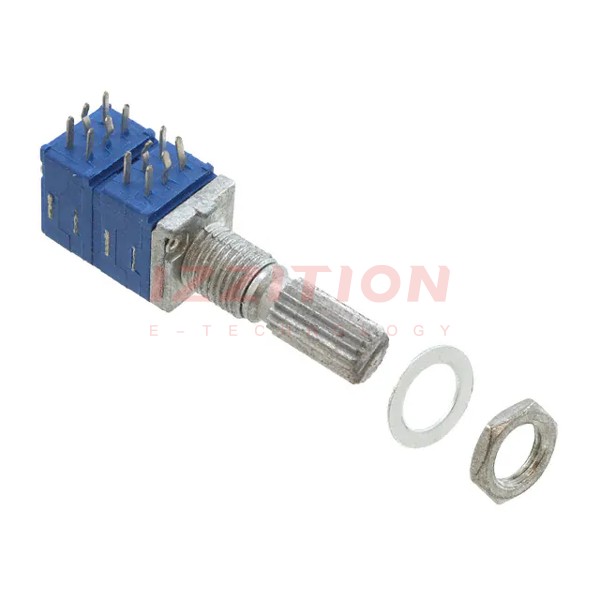

| Part Number | PTD904-1215K-B203 | PTD904-1215K-B503 | PTD904-1015K-B203 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 20k | 50k | 20k |
| Tolerance | ±10% | ±10% | ±10% |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Built in Switch | Detent | Detent | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 4 | 4 | 4 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - |
| Rotation | 300° | 300° | 300° |
| Resistive Material | Carbon | Carbon | Carbon |
| Termination Style | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks |
| Actuator Type | Knurled and Slotted | Knurled and Slotted | Knurled and Slotted |
| Actuator Length | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
