PTD901-2015K-A502
  • Share:

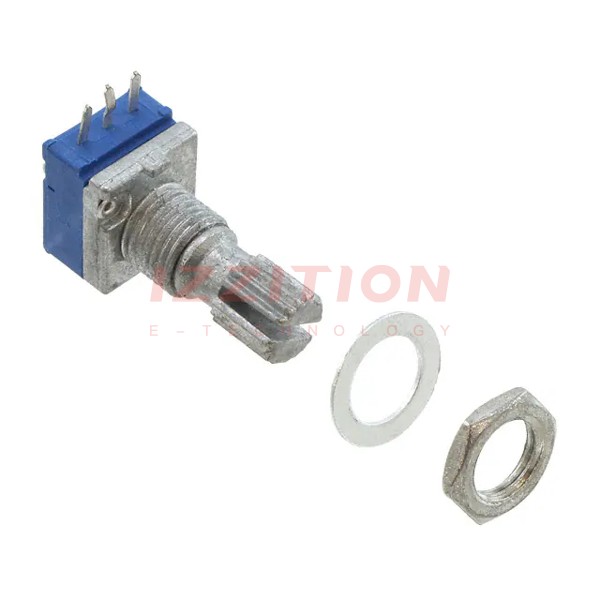

Bourns Inc. PTD901-2015K-A502

Manufacturer No:
PTD901-2015K-A502
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
PTD901-2015K-A502 Datasheet
ECAD Model:
-
Description:
POT 5K OHM 1/40W CARBON LOG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):5k
Tolerance:±20%
Power (Watts):0.025W, 1/40W
Built in Switch:None
Number of Turns:1
Features:-
Taper:Logarithmic
Number of Gangs:1
Adjustment Type:Side Adjustment
Temperature Coefficient:-
Rotation:300°
Resistive Material:Carbon
Termination Style:PC Pins, Board Locks
Actuator Type:Knurled and Slotted
Actuator Length:0.591" (15.00mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:M7 x 0.75
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$1.16
31

Please send RFQ , we will respond immediately.

Similar Products

Part Number PTD901-2015K-A502 PTD901-2015K-B502   PTD902-2015K-A502   PTD901-2015K-A503   PTD901-2015K-A102
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active
Resistance (Ohms) 5k 5k 5k 50k 1K
Tolerance ±20% ±20% ±20% ±20% ±20%
Power (Watts) 0.025W, 1/40W 0.05W, 1/20W 0.025W, 1/40W 0.025W, 1/40W 0.025W, 1/40W
Built in Switch None None None None None
Number of Turns 1 1 1 1 1
Features - - - - -
Taper Logarithmic Linear Logarithmic Logarithmic Logarithmic
Number of Gangs 1 1 2 1 1
Adjustment Type Side Adjustment Side Adjustment Side Adjustment Side Adjustment Side Adjustment
Temperature Coefficient - - - - -
Rotation 300° 300° 300° 300° 300°
Resistive Material Carbon Carbon Carbon Carbon Carbon
Termination Style PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks PC Pins, Board Locks
Actuator Type Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted
Actuator Length 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Bushing Thread M7 x 0.75 M7 x 0.75 M7 x 0.75 M7 x 0.75 M7 x 0.75
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
