Please send RFQ , we will respond immediately.

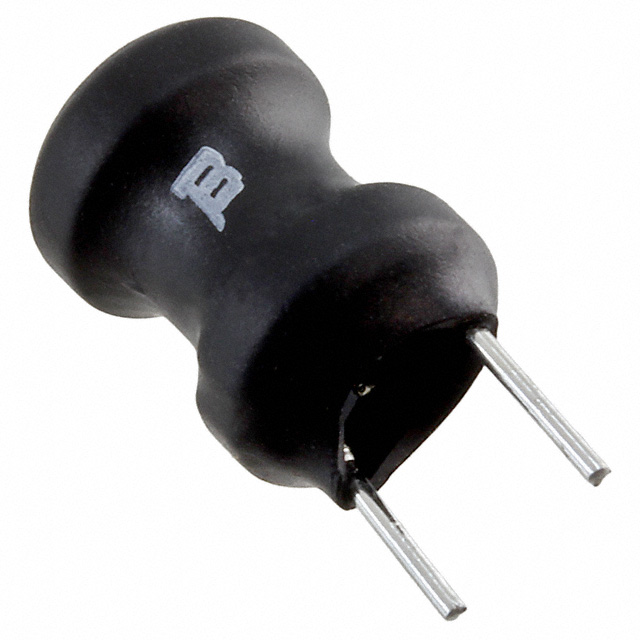

| Part Number | PT12130SL | PT12133SL | PT12131SL | PT12132SL | PT12134SL | PT12135SL | PT12136SL | PT12137SL | PT12138SL | PT12139SL | PT12140SL | PT12110SL | PT12120SL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Last Time Buy | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Inductance | 4.7 mH | 8.2 mH | 5.6 mH | 6.8 mH | 10 mH | 12 mH | 15 mH | 18 mH | 22 mH | 27 mH | 33 mH | 100 µH | 600 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 50 mA | 50 mA | 50 mA | 50 mA | 40 mA | 40 mA | 40 mA | 30 mA | 30 mA | 30 mA | 30 mA | 200 mA | 200 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 18Ohm Max | 26Ohm Max | 18Ohm Max | 26Ohm Max | 40Ohm Max | 40Ohm Max | 60Ohm Max | 60Ohm Max | 80Ohm Max | 80Ohm Max | 80Ohm Max | 2Ohm Max | 4Ohm Max |
| Q @ Freq | 90 @ 252kHz | 90 @ 252kHz | 90 @ 252kHz | 90 @ 252kHz | 100 @ 79.6kHz | 100 @ 79.6kHz | 100 @ 79.6kHz | 100 @ 79.6kHz | 100 @ 79.6kHz | 100 @ 79.6kHz | 100 @ 79.6kHz | 80 @ 796kHz | 80 @ 796kHz |
| Frequency - Self Resonant | 600kHz | 500kHz | 600kHz | 500kHz | 400kHz | 400kHz | 400kHz | 300kHz | 300kHz | 300kHz | 300kHz | 5.3MHz | 1.6MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Inductance Frequency - Test | 252 kHz | 252 kHz | 252 kHz | 252 kHz | 79.6 kHz | 79.6 kHz | 79.6 kHz | 79.6 kHz | 79.6 kHz | 79.6 kHz | 79.6 kHz | 796 kHz | 796 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
