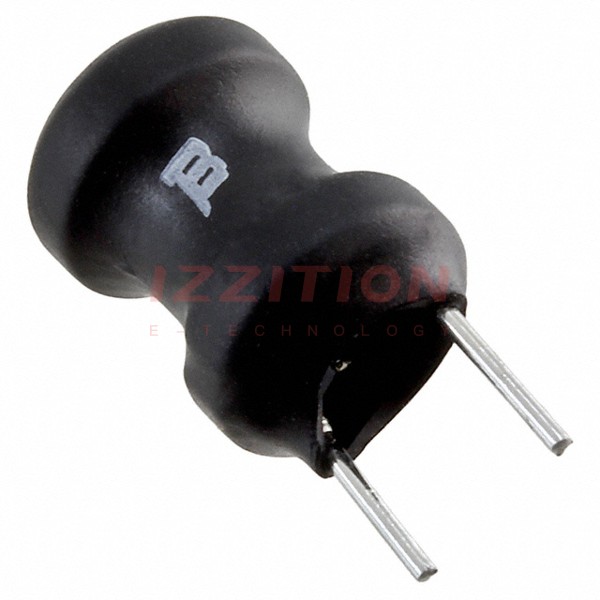

| Part Number | PT12119SL | PT12129SL | PT12139SL | PT12110SL | PT12111SL | PT12112SL | PT12113SL | PT12114SL | PT12115SL | PT12116SL | PT12117SL | PT12118SL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | - | - | - | - | - | - | - | - | - |
| Inductance | 560 µH | 3.9 mH | 27 mH | 100 µH | 120 µH | 150 µH | 180 µH | 220 µH | 270 µH | 330 µH | 390 µH | 470 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 50 mA | 30 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4Ohm Max | 13Ohm Max | 80Ohm Max | 2Ohm Max | 2Ohm Max | 2Ohm Max | 3Ohm Max | 3Ohm Max | 3Ohm Max | 4Ohm Max | 4Ohm Max | 4Ohm Max |
| Q @ Freq | 80 @ 796kHz | 90 @ 252kHz | 100 @ 79.6kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz | 80 @ 796kHz |
| Frequency - Self Resonant | 1.7MHz | 700kHz | 300kHz | 5.3MHz | 4.5MHz | 3.8MHz | 3.3MHz | 2.9MHz | 2.6MHz | 2.3MHz | 2.1MHz | 1.9MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Inductance Frequency - Test | 796 kHz | 252 kHz | 79.6 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) | 0.400" Dia (10.15mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
