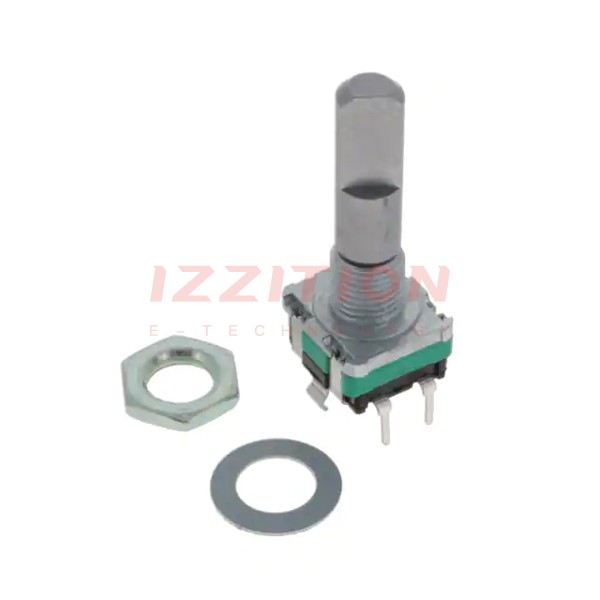

| Part Number | PRS11R-225F-S103B1 | PRS11R-215F-S103B1 | PRS11R-225F-N103B1 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k |
| Tolerance | ±20% | ±20% | ±20% |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Built in Switch | Momentary Push, SPST | Momentary Push, SPST | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - |
| Rotation | 300° | 300° | 300° |
| Resistive Material | - | - | - |
| Termination Style | PC Pins | PC Pins | PC Pins |
| Actuator Type | Flatted | Flatted | Flatted |
| Actuator Length | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
