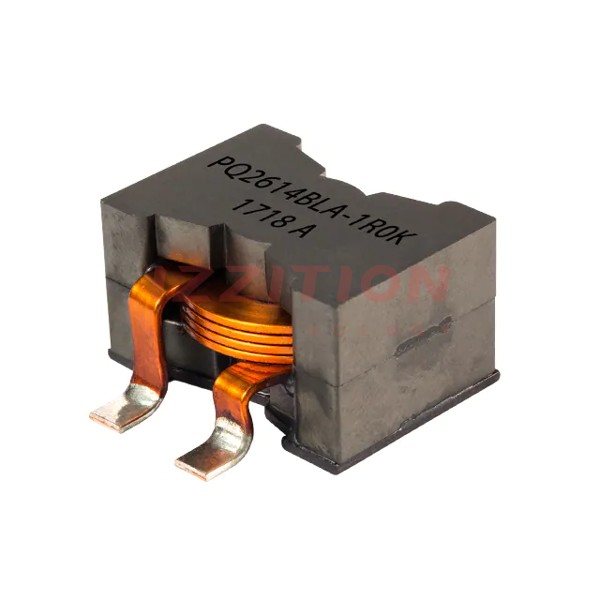

| Part Number | PQ2614BLA-150K | PQ2614BLA-1R0K | PQ2614BHA-150K | PQ2614BLA-100K |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1 µH | 15 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 30 A | 30 A | 30 A | 30 A |
| Current - Saturation (Isat) | 9.8A | - | 14A | 16.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.6mOhm Max | 1.2mOhm Max | 1.9mOhm Max | 1.6mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 15MHz | 61MHz | 12MHz | 20MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 1.098" L x 0.780" W (27.90mm x 19.80mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) |
