PM54-560K-RC
  • Share:

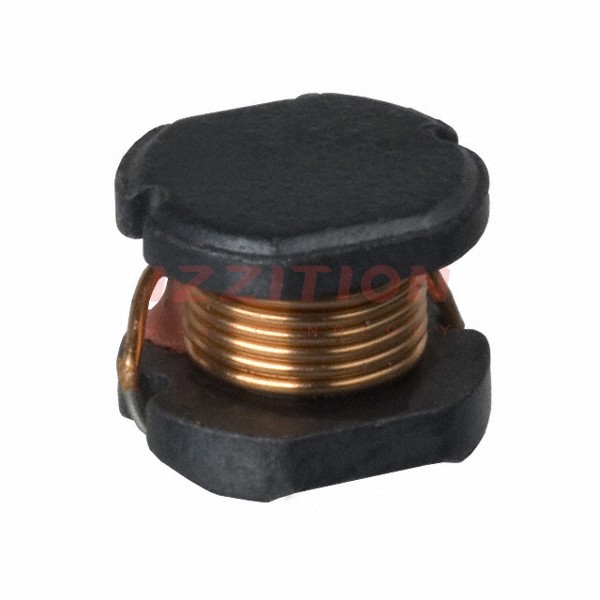

Bourns Inc. PM54-560K-RC

Manufacturer No:
PM54-560K-RC
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PM54-560K-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 56UH 680MA 420MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):680 mA
Current - Saturation (Isat):900mA
Shielding:Unshielded
DC Resistance (DCR):420mOhm
Q @ Freq:22 @ 2.52MHz
Frequency - Self Resonant:11MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.189" (4.80mm)
0 Remaining View Similar

In Stock

$1.10
233

Please send RFQ , we will respond immediately.
