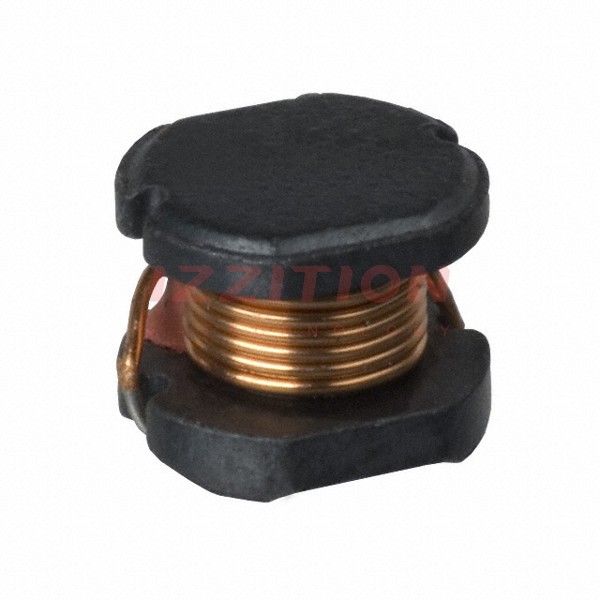

| Part Number | PM54-221K-RC | PM54-121K-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 220 µH | 120 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 350 mA | 480 mA |
| Current - Saturation (Isat) | 440mA | 600mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.57Ohm | 930mOhm |
| Q @ Freq | 20 @ 796kHz | 22 @ 796kHz |
| Frequency - Self Resonant | 6MHz | 7MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
