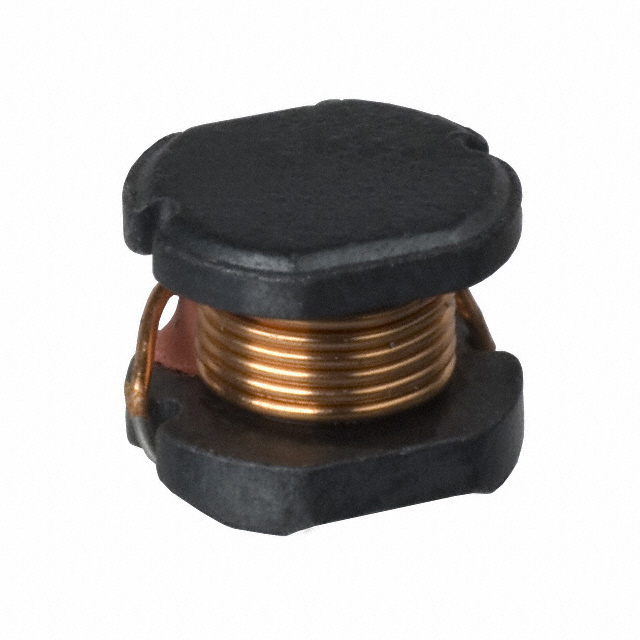

| Part Number | PM54-220M-RC | PM54-270M-RC | PM54-120M-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 27 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.1 A | 1 A | 1.4 A |
| Current - Saturation (Isat) | 1.4A | 1.3A | 1.9A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 190mOhm | 220mOhm | 120mOhm |
| Q @ Freq | 30 @ 2.52MHz | 28 @ 2.52MHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz | 14MHz | 22MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
