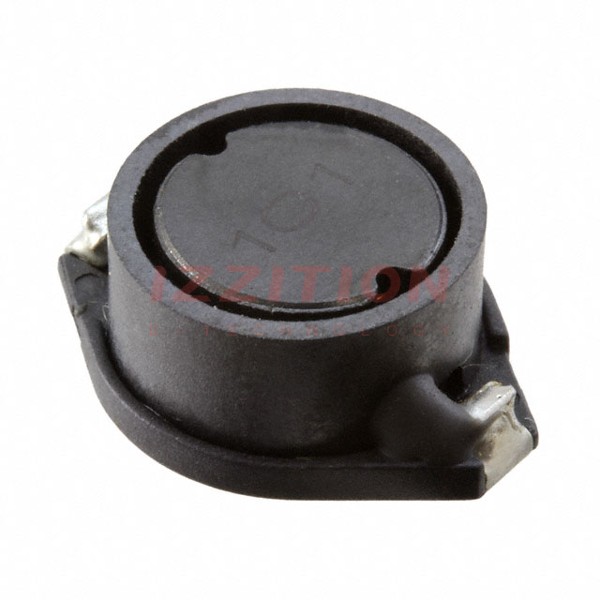

| Part Number | PM5022S-221M | PM5022-221M | PM5022S-220M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 220 µH | 220 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.1 A | 1.1 A | 3.1 A |
| Current - Saturation (Isat) | 1.9A | 2.2A | 6A |
| Shielding | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 470mOhm Max | 380mOhm | 59mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.732" L x 0.602" W (18.60mm x 15.30mm) |
| Height - Seated (Max) | 0.299" (7.60mm) | 0.272" (6.90mm) | 0.299" (7.60mm) |
