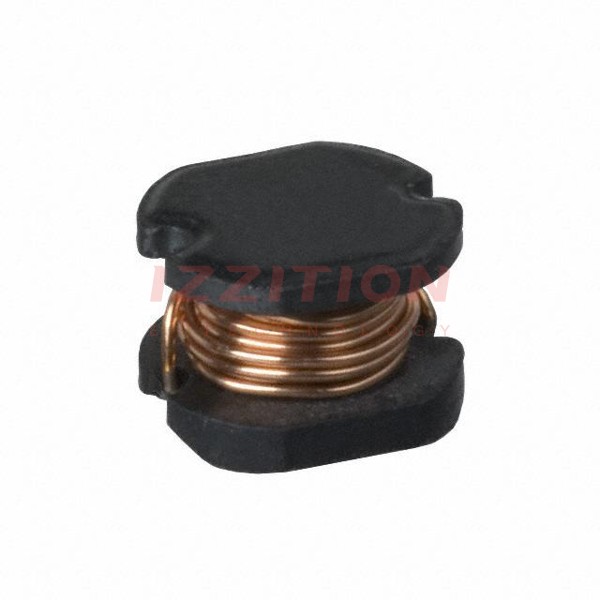

| Part Number | PM43-270K-RC | PM43-470K-RC | PM43-270M-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 27 µH | 47 µH | 27 µH |
| Tolerance | ±10% | ±10% | ±20% |
| Current Rating (Amps) | 710 mA | 540 mA | 710 mA |
| Current - Saturation (Isat) | 1A | 780mA | 1A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 520mOhm | 840mOhm | 520mOhm Max |
| Q @ Freq | 23 @ 2.52MHz | 20 @ 2.52MHz | 23 @ 2.52MHz |
| Frequency - Self Resonant | 17MHz | 13MHz | 17MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
