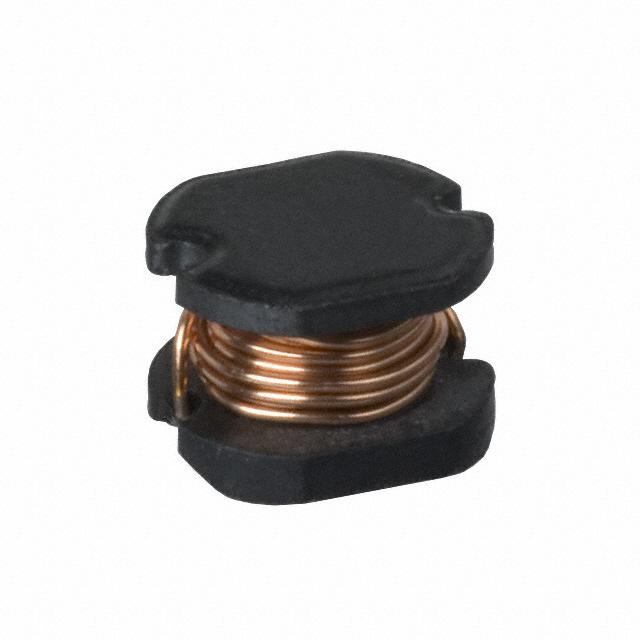

| Part Number | PM43-1R0M-RC | PM43-1R4M-RC | PM43-1R8M-RC | PM43-100M-RC | PM43-120M-RC | PM43-150M-RC | PM43-180M-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.4 µH | 1.8 µH | 10 µH | 12 µH | 15 µH | 18 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.8 A | 3.3 A | 2.91 A | 1.15 A | 1.05 A | 920 mA | 840 mA |
| Current - Saturation (Isat) | 5.5A | 5.1A | 4.4A | 1.7A | 1.6A | 1.4A | 1.3A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 33mOhm Max | 38mOhm Max | 42mOhm Max | 180mOhm Max | 210mOhm Max | 240mOhm Max | 340mOhm Max |
| Q @ Freq | 28 @ 7.96MHz | 28 @ 7.96MHz | 28 @ 7.96MHz | 28 @ 2.52MHz | 28 @ 2.52MHz | 28 @ 2.52MHz | 25 @ 2.52MHz |
| Frequency - Self Resonant | 150MHz | 110MHz | 90MHz | 33MHz | 30MHz | 28MHz | 23MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
