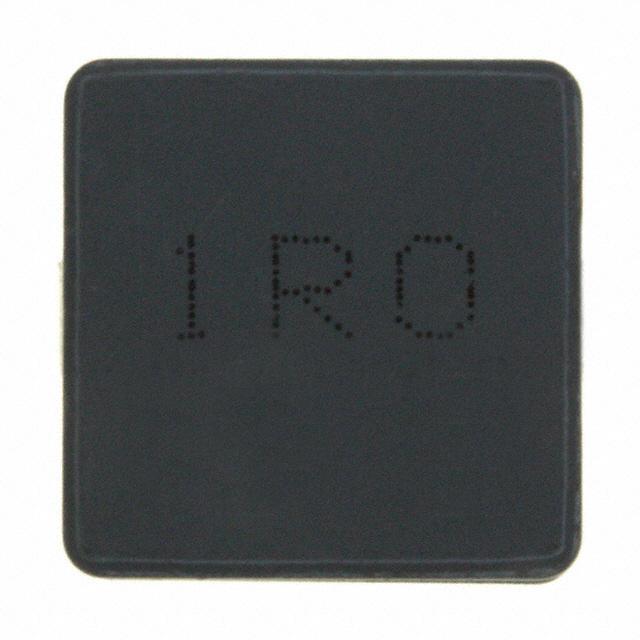

Bourns Inc.-PM42S-150 - Fixed Inductors Product Specifications and Latest Quotes

Part Number	PM42S-150	PM42S-151	PM42S-180	PM42S-1R0	PM42S-100	PM42S-120
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Type	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound
Material - Core	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Inductance	15 µH	150 µH	18 µH	1 µH	10 µH	12 µH
Tolerance	±30%	±30%	±30%	±30%	±30%	±30%
Current Rating (Amps)	500 mA	150 mA	480 mA	1.72 A	610 mA	560 mA
Current - Saturation (Isat)	-	-	-	-	-	-
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	240mOhm Max	2.67Ohm Max	338mOhm Max	45mOhm Max	200mOhm Max	210mOhm Max
Q @ Freq	-	-	-	-	-	-
Frequency - Self Resonant	-	-	-	-	-	-
Ratings	-	-	-	-	-	-
Operating Temperature	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C
Inductance Frequency - Test	10 kHz	10 kHz	10 kHz	7.96 MHz	10 kHz	10 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)

Bourns Inc. PM42S-150
