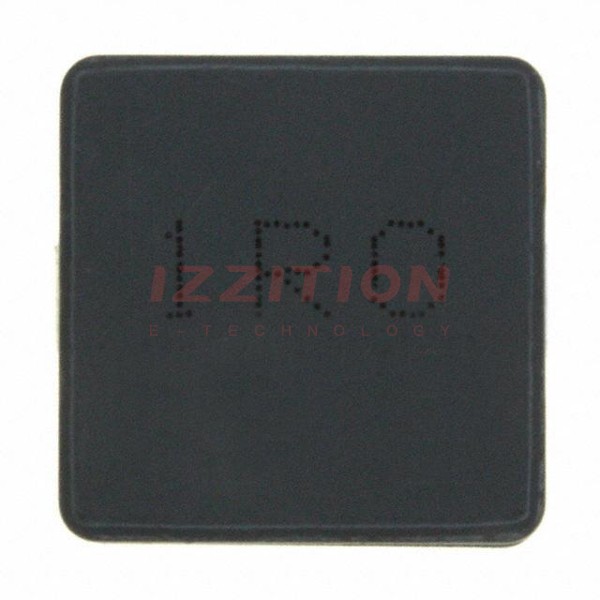

Bourns Inc.-PM42S-100 - Fixed Inductors Product Specifications and Latest Quotes

Part Number	PM42S-100	PM42S-101	PM42S-120	PM42S-150	PM42S-180	PM42S-1R0
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Type	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound
Material - Core	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Inductance	10 µH	100 µH	12 µH	15 µH	18 µH	1 µH
Tolerance	±30%	±30%	±30%	±30%	±30%	±30%
Current Rating (Amps)	610 mA	200 mA	560 mA	500 mA	480 mA	1.72 A
Current - Saturation (Isat)	-	-	-	-	-	-
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	200mOhm Max	1.73Ohm Max	210mOhm Max	240mOhm Max	338mOhm Max	45mOhm Max
Q @ Freq	-	-	-	-	-	-
Frequency - Self Resonant	-	-	-	-	-	-
Ratings	-	-	-	-	-	-
Operating Temperature	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C	-30°C ~ 100°C
Inductance Frequency - Test	10 kHz	10 kHz	10 kHz	10 kHz	10 kHz	7.96 MHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)

Bourns Inc. PM42S-100
