Please send RFQ , we will respond immediately.

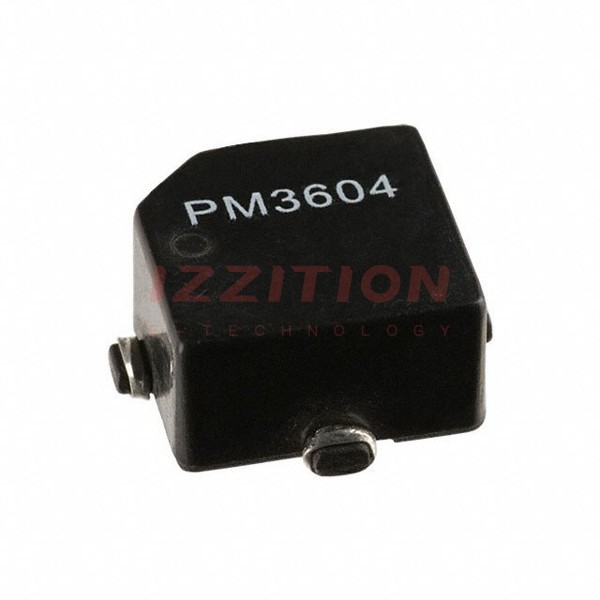

| Part Number | PM3604-68-B-RC | PM3604-8-B-RC | PM3602-68-B-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Number of Coils | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 68 µH | 8 µH | 68 µH |
| Inductance - Connected In Series | 272 µH | 32 µH | 272 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 1.19 A | 3 A | 720 mA |
| Current Rating - Series | 600 mA | 1.5 A | 360 mA |
| Current Saturation - Parallel | - | - | - |
| Current Saturation - Series | - | - | - |
| DC Resistance (DCR) - Parallel | 140mOhm Max | 24mOhm Max | 260mOhm Max |
| DC Resistance (DCR) - Series | 560mOhm Max | 96mOhm Max | 1.04Ohm Max |
| Shielding | Unshielded | Unshielded | Unshielded |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.452" L x 0.354" W (11.48mm x 8.99mm) |
| Height | 0.265" (6.73mm) | 0.265" (6.73mm) | 0.225" (5.72mm) |
