Please send RFQ , we will respond immediately.

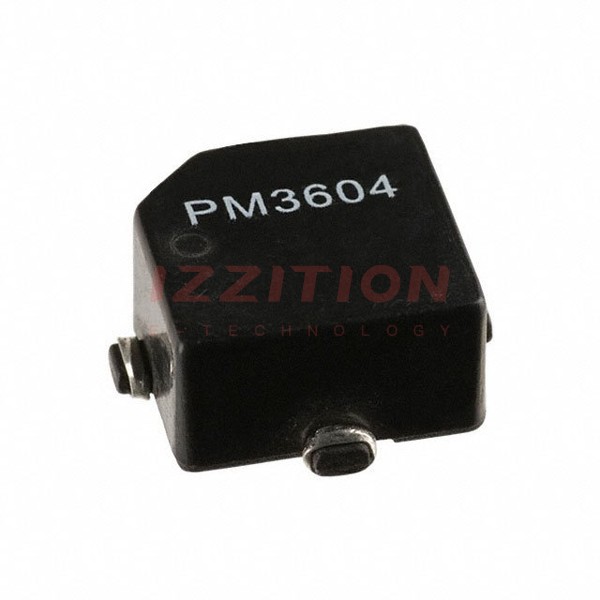

| Part Number | PM3604-300-B | PM3602-300-B | PM3604-100-B | PM3604-200-B |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Coils | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 300 µH | 300 µH | 100 µH | 200 µH |
| Inductance - Connected In Series | 1.2 mH | 1.2 mH | 400 µH | 800 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 520 mA | 320 mA | 980 mA | 650 mA |
| Current Rating - Series | 260 mA | 160 mA | 490 mA | 330 mA |
| Current Saturation - Parallel | - | - | - | - |
| Current Saturation - Series | - | - | - | - |
| DC Resistance (DCR) - Parallel | 730mOhm Max | 1.31Ohm Max | 210mOhm Max | 470mOhm Max |
| DC Resistance (DCR) - Series | 2.92Ohm Max | 5.24Ohm Max | 840mOhm Max | 1.88Ohm Max |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.550" L x 0.452" W (13.97mm x 11.48mm) |
| Height | 0.265" (6.73mm) | 0.225" (5.72mm) | 0.265" (6.73mm) | 0.265" (6.73mm) |
