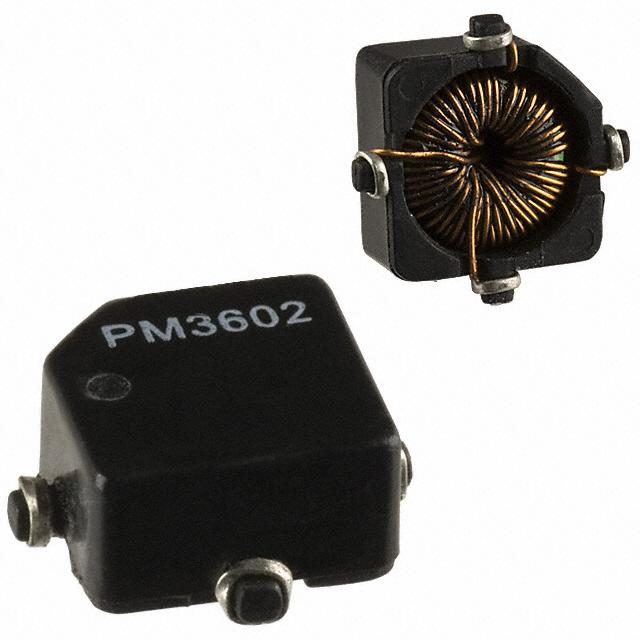

| Part Number | PM3602-33-RC | PM3604-33-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Number of Coils | 2 | 2 |
| Inductance - Connected In Parallel | 33 µH | 33 µH |
| Inductance - Connected In Series | 132 µH | 132 µH |
| Tolerance | ±20% | ±20% |
| Current Rating - Parallel | 980 mA | 1.6 A |
| Current Rating - Series | 490 mA | 800 mA |
| Current Saturation - Parallel | - | - |
| Current Saturation - Series | - | - |
| DC Resistance (DCR) - Parallel | 140mOhm Max | 78mOhm Max |
| DC Resistance (DCR) - Series | 560mOhm Max | 310mOhm Max |
| Shielding | Unshielded | Unshielded |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Size / Dimension | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.550" L x 0.452" W (13.97mm x 11.48mm) |
| Height | 0.225" (5.72mm) | 0.265" (6.73mm) |
