Please send RFQ , we will respond immediately.

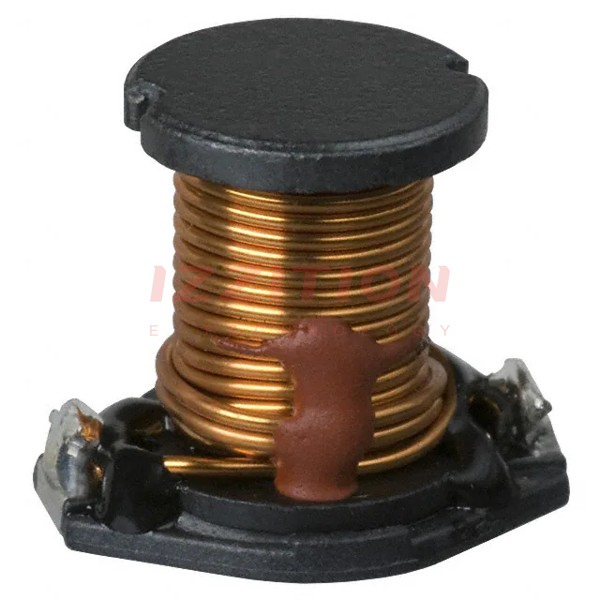

| Part Number | PM3340-331M-RC | PM3340-330M-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 330 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 600 mA | 2 A |
| Current - Saturation (Isat) | 1.2A | 4A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 700mOhm Max | 80mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.512" L x 0.402" W (13.00mm x 10.20mm) | 0.512" L x 0.402" W (13.00mm x 10.20mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) |
