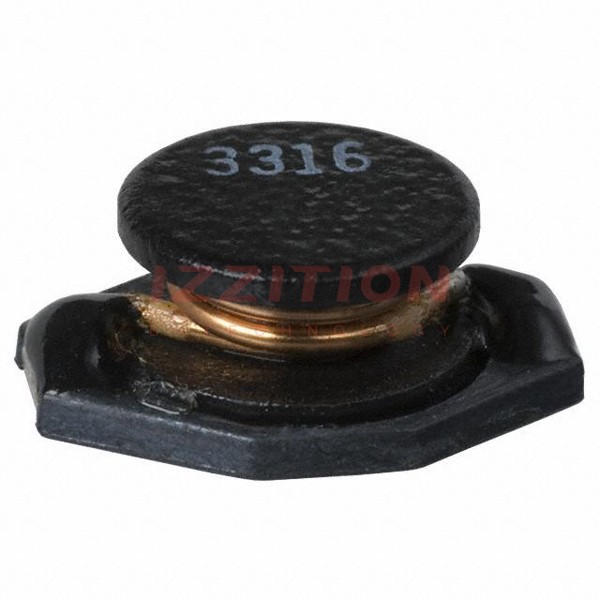

| Part Number | PM3316-100M-RC | PM3316-101M-RC | PM3316-102M-RC | PM3316-150M-RC | PM3316-1R0M-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 100 µH | 1 mH | 15 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.9 A | 1 A | 300 mA | 2.5 A | 7.5 A |
| Current - Saturation (Isat) | 3.7A | 1.2A | 350mA | 3A | 9A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm | 330mOhm | 3.9Ohm | 60mOhm | 7mOhm |
| Q @ Freq | 50 @ 3MHz | 30 @ 50kHz | 81 @ 70kHz | 50 @ 3MHz | 20 @ 10MHz |
| Frequency - Self Resonant | 26MHz | 8MHz | 2MHz | 22MHz | 137MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.209" (5.30mm) | 0.209" (5.30mm) | 0.209" (5.30mm) | 0.209" (5.30mm) |
