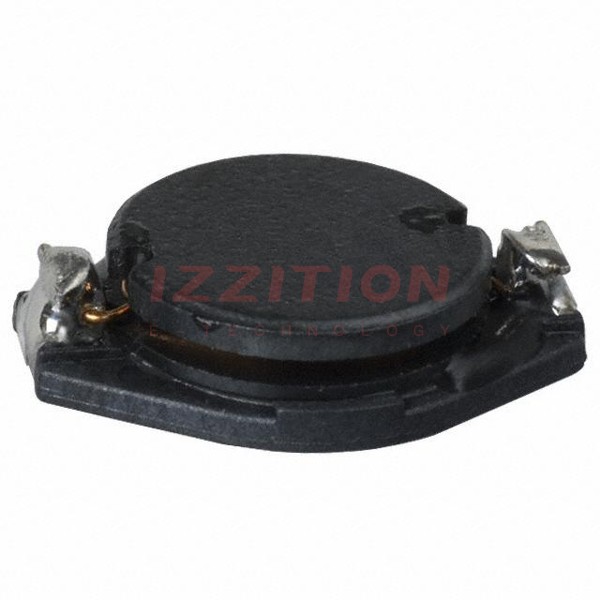

| Part Number | PM3308-680M-RC | PM3308-681M-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 680 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 700 mA | 100 mA |
| Current - Saturation (Isat) | 900mA | 200mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 700mOhm Max | 5.3Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.512" L x 0.374" W (13.00mm x 9.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
