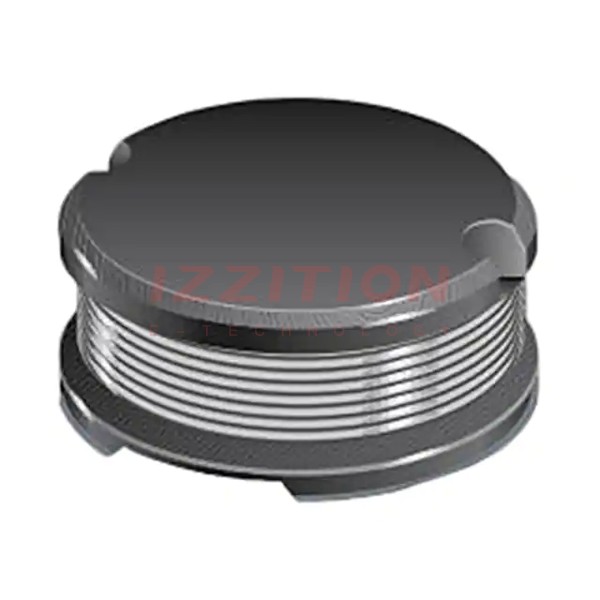

| Part Number | PM32-220M-RC | PM32-270M-RC | PM32-820M-RC | PM32-221M-RC | PM32-120M-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 27 µH | 82 µH | 220 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 520 mA | 480 mA | 280 mA | 170 mA | 750 mA |
| Current - Saturation (Isat) | 650mA | 550mA | 300mA | 190mA | 850mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 660mOhm Max | 480mOhm Max | 2.1Ohm Max | 5.7Ohm Max | 280mOhm Max |
| Q @ Freq | 23 @ 2.52MHz | 23 @ 2.52MHz | 24 @ 2.52MHz | 40 @ 796kHz | 15 @ 2.52MHz |
| Frequency - Self Resonant | 22MHz | 20MHz | 12MHz | 8MHz | 33MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
